NM Plus 1000 FID Tower Hydrogen + Zero Air Generator
Price: Quote Only
–+

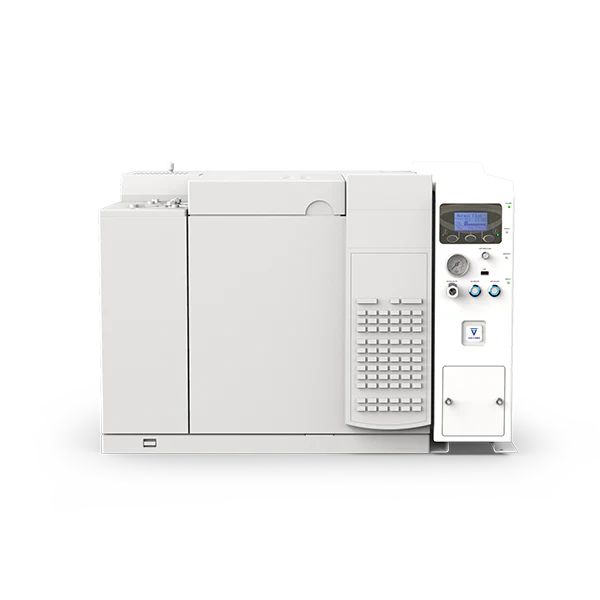

The space-saving NM Plus 1000 FID Tower Hydrogen + Zero Air Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen.
De-ionized water is automatically loaded from smart internal system tanks with a 3 liter capacity, providing up to 3000 liters of H2 before a refill is required. The only recommended maintenance is replacement of the internal deionizing cartridge, which has been greatly simplified.
NM PLUS 1000 FID TOWER FEATURES:
▪︎ Flow rate 1000 mL/min
▪︎ Zero Air flow rates 1.8 L/min or 5 L/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty
Part# DB-FTNM1000-EU (230-240V/50-60Hz)
Part# DB-FTNM1000-US (115V/60Hz)
Part# DB-FTNM1000-JP (100V/60Hz)
GC APPLICATIONS
▪︎ GC/MS CARRIER GAS
▪︎ GC CARRIER GAS
▪︎ GC FUEL GAS
▪︎ GC-ELCD & HALL ELCD REACTION GAS
SPECTROSCOPY APPLICATIONS
▪︎ ICP-MS COLLISION CELL REACTION GAS
ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
▪︎ CHEMISORPTION/PHYSISORPTION MEASUREMENT GAS
OTHER LAB APPLICATIONS
▪︎ CHEMICAL VAPOR DEPOSITION INSTRUMENTATION (CVD)
AID DEPOSITION PROCESS
▪︎ PLASMA CLEANING INSTRUMENTATION (UCP)
▪︎ HIGH EFFICIENCY PROCESS GAS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
▪︎ WEATHER BALLOON FILLING
▪︎ ELECTRONIC NOSE (eNOSE)
▪︎ 2-D CHROMATOGRAPHY
▪︎ 3-D CHROMATOGRAPHY
The following options are available:
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor
| Flow mL/min | 1000 |
| Purity | >99.99996% |
| Dewpoint at 7 barg (100 psig) | -73 ºC (-103 ºF) |
| Outlet pressure barg (psig) | 1.4 to 11 (20 to 160) |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell |
| Drying system | No maintenance cold dual dynamic regeneration system |
| Deionized water quality | Minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II Recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II |
| Internal water tank (liters) | 5 |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure and low water |
| Display | Touch screen with operating parameters, system status and safety alarms |
| LED indicators | Power on/off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 400 |
| Product dimensions mm (in) | 140W x 490H x 580D (5.5W x 19H x 22.8D) |
| Product weight kg (lbs) | 26 (57) |
| Shipping dimensions mm (in) | 770W x 590H x 410D (30.3W x 23.2H x 16.1D) |
| Shipping weight kg (lbs) | 30 (66) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
+ Zero Air Generator Module Specs
Flow mL/min | 1800 | 5000 |
| Purity - hydrocarbons + CO | <0.1 ppm | <0.1 ppm |
| Inlet pressure barg (psig) | 4.5 to 10 (65 to 145) | |
| Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 | |
| Max outlet pressure barg (psig) | 5 (73) | |
| Max HC in | 100 ppm | |
| Max CO in | 50 ppm | |
