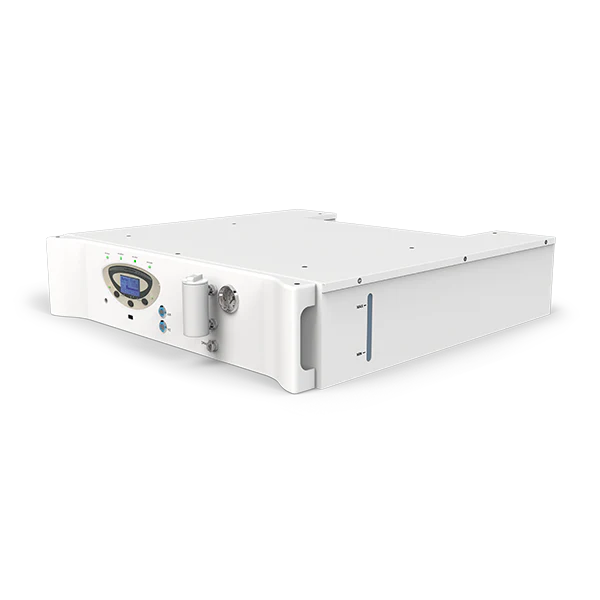

NM Plus 100 FID Station Hydrogen Generator
Price: Quote Only
–+

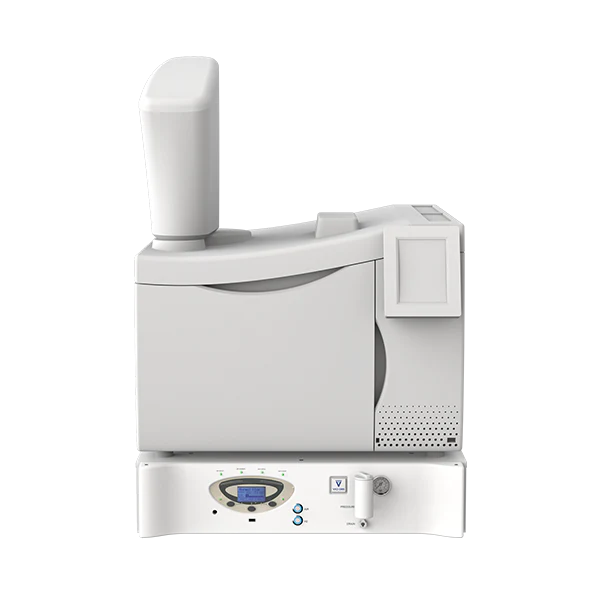

The NM Plus 100 FID Station Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen at a flow rate of 100 mL/min. The horizontal format is designed to sit under and support the weight of your GC, optimizing bench space. At only 150 mm (6 inches) high, the generator will still allow easy access to the injectors of any GC on the market.
NM PLUS 100 FID STATION FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique Nafion membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2-year standard warranty
Part# DB-FNM100-EU (230-240V/50-60Hz)
Part# DB-FNM100-US (115V/60Hz)
Part# DB-FNM100-JP (100V/60Hz)
GC APPLICATIONS
▪︎ GC CARRIER GAS
▪︎ GC/MS CARRIER GAS
▪︎ GC FUEL GAS
▪︎ GC-ELCD & HALL ELCD REACTION GAS
SPECTROSCOPY APPLICATIONS
▪︎ ICP-MS COLLISION CELL REACTION GAS
ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
▪︎ CHEMISORPTION/PHYSISORPTION MEASUREMENT GAS
OTHER LAB APPLICATIONS
▪︎ CHEMICAL VAPOR DEPOSITION INSTRUMENTATION (CVD)
AID DEPOSITION PROCESS
▪︎ PLASMA CLEANING INSTRUMENTATION (UCP)
▪︎ HIGH-EFFICIENCY PROCESS GAS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
▪︎ WEATHER BALLOON FILLING
▪︎ ELECTRONIC NOSE (eNOSE)
▪︎ 2-D CHROMATOGRAPHY
▪︎ 3-D CHROMATOGRAPHY
The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)

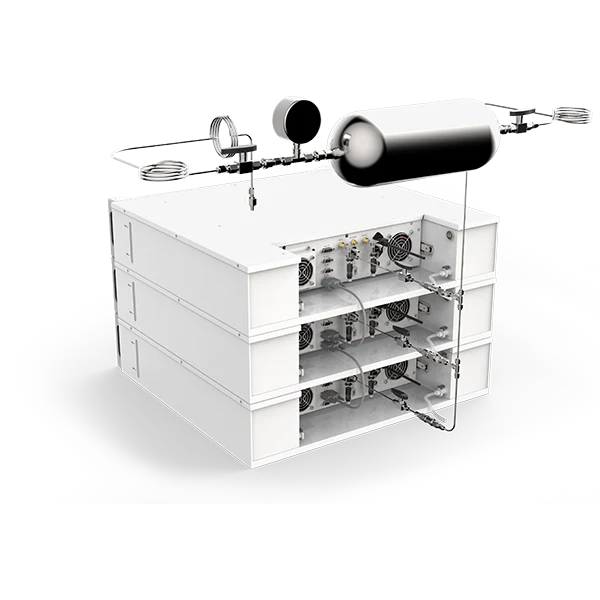

▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor
▪︎ FID-Station MS Extension
| Flow mL/min | 100 |
| Purity | >99.99996% |
| Dewpoint at 7 barg (100 psig) | -73 ºC (-103 ºF) |
| Outlet pressure barg (psig) | 1.4 to 11 (20 to 160) |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell |
| Drying system | No maintenance cold dual dynamic regeneration system |
| Deionized water quality | minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II |
| Internal water tank (liters) | 7 |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure and low water |
| Display | Touch screen with operating parameters, system status and safety alarms |
| LED indicators | Power on/off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 90 |

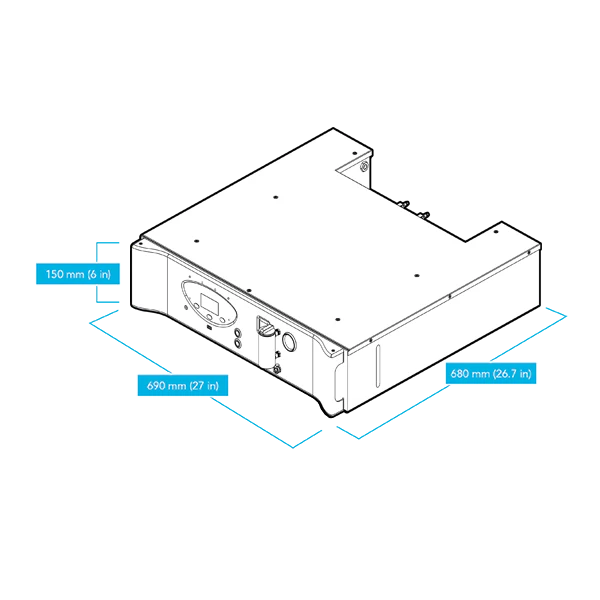

| Product Dimensions mm (in) | 690W x 150H x 680D (27W x 6H x 26.7D) |
| Product Weight kg (lbs) | 41 (90) |
| Shipping dimensions mm (in) | 890W x 385H x 800D (35W x 15.1H x 31.4D) |
| Shipping weight Kg (lbs) | 47 (103) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" Compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
