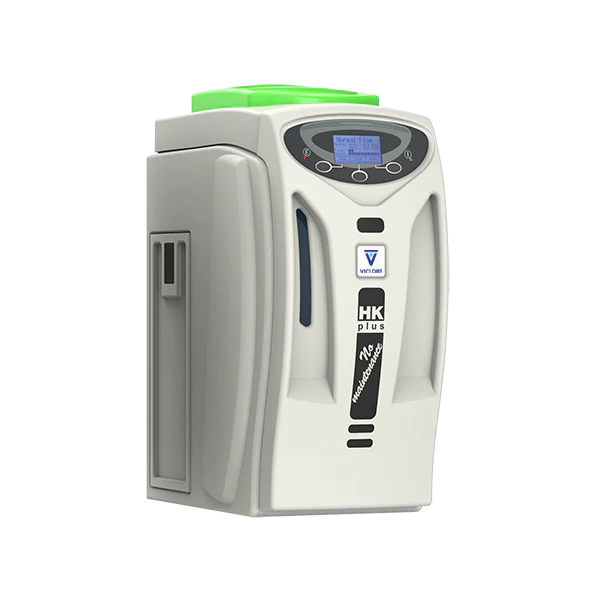

HK Plus 100 Hydrogen Generator
Price: Quote Only
–+
The HK Plus 100 Hydrogen Generator* provides superior performance with proprietary electrolytic cell technology combined with high quality components and a unique hydrogen drying solution. *MINIMUM ORDER OF 5 GENERATORS
HK PLUS 100 FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity 99.999%
▪︎ Pressure up to 7 barg (100 psig)
▪︎ Minimal maintenance
▪︎ Unique drying membrane - no desiccant cartridges required
▪︎ Unique 100% titanium electrolytic cell
▪︎ 2 year standard warranty
Part# DB-PHK100-EU (230-240V/50-60Hz)
Part# DB-PHK100-US (115V/60Hz)
Part# DB-PHK100-JP (100V/60Hz)

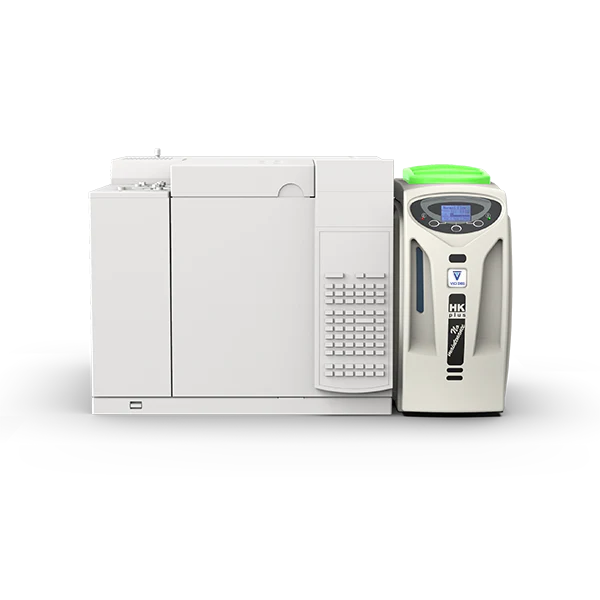

PRODUCTS FOR GC
▪︎ GC-FID FUEL GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-NPD PLASMA GAS
ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
OTHER LAB APPLICATIONS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
The following options are available:
▪︎ N/A
| Flow mL/min | 100 |
| Purity | 99.999% |
| Dew point at 7 barg (100 psig) | -25 ºC (-13 ºF) |
| Outlet pressure barg (psig) | 0.5 to 7 (7 to 100) |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell |
| Drying system | Regenerative Permeation Membrane |
| Deionized water quality | minimum <1 μS/cm @25 ºC - 1 MΩ-cm@25 ºC - ASTM II recommended <0.2 μS/cm @25 ºC - 5 MΩ-cm @25 ºC - ASTM II |
| Internal water tank (liters) | 2.5 |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure and low water |
| Display | Touch screen with operating parameters, system status and safety alarms |
| LED indicators | Power on/off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 75 |

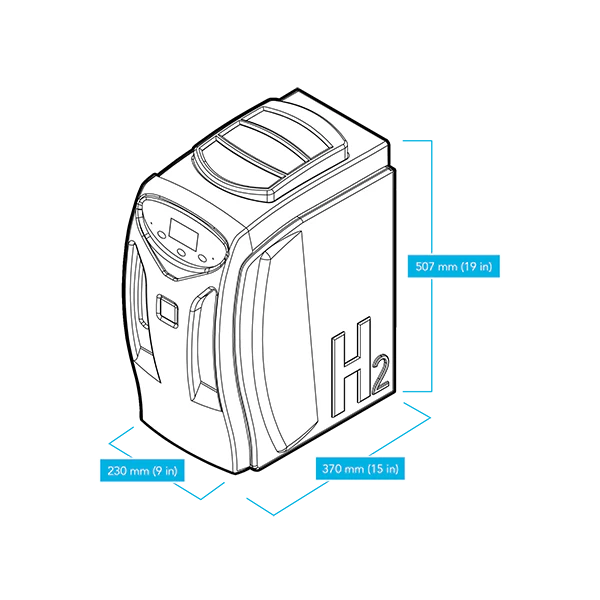

| Dimensions mm (in) | 230W x 507H x 370D (9W x 19H x 15D) |
| Product Weight kg (lbs) | 13 (28.5) |
| Shipping box dimensions | 580W x 570H x 400D (22.8W x 22.4H x 15.7D) |
| Shipping weight Kg (lbs) | 17 (37.5) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" Compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
