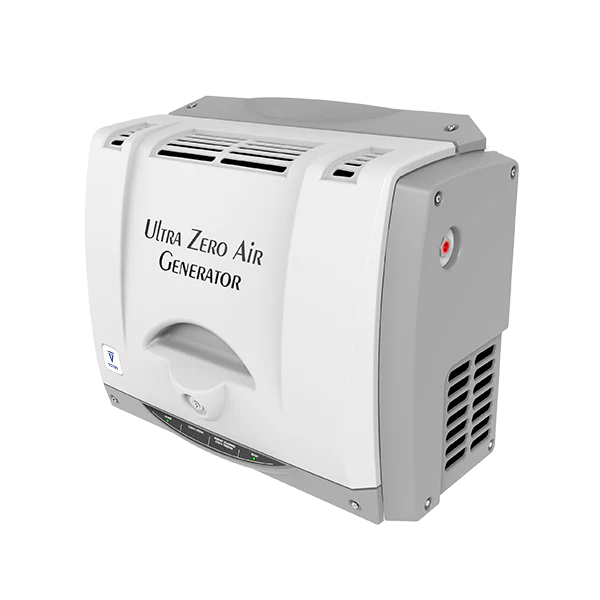

GT Plus 1500 Ultra-Zero Air Generator
Price: Quote Only
–+
The GT Plus 1500 Ultra-Zero Air Generator are designed to supply ultra pure hydrocarbon-free zero air for GC-FID applications. Catalytic oxidation technology eliminates hydrocarbons to 0.1 ppm, resulting in a flat, stable baseline, increased sensitivity, and repeatable analysis.
The GT Zero Air Generator removes CO, CO2, NOX, SOX, and water vapor, making it ideal for demanding applications such as TOC, continuous emissions monitoring, and process control applications.
GT PLUS 1500 ZERO AIR FEATURES:
▪︎ Flow rate 1500 mL/min
▪︎ Pressure up to 10 barg (145 psig)
▪︎ Zero air purity 0.1 ppm HC, 5 ppm CO2, 0.1 ppm CO, 0.1 ppm NOX and SOX
▪︎ Minimal maintenance
▪︎ 2 year standard warranty
PRODUCTS FOR ANALYZERS
▪︎ CEM CONTINUOUS EMISSIONS MONITORING
▪︎ CO2 ANALYZERS
▪︎ EMISSIONS ANALYZERS
▪︎ STACK GAS SAMPLER
▪︎ ONLINE AND LABORATORY TOC
▪︎ ONLINE AND LABORATORY FT
The following options are available:
▪︎ N/A
| Flow mL/min | 1500 |
| Purity - hydrocarbons | <0.1 ppm |
| Purity - CO | <0.1 ppm |
| Purity - CO2 | <5 ppm |
| Purity - NOx | <0.1 ppm |
| Purity - S0x | <0.1 ppm |
| Dew point ºC (oF) | -50 (-58) |
| Inlet pressure barg (psig) | 4.5 to 10 (65 to 145) |
| Outlet pressure barg (psig) | 1 (15) drop from inlet |
| Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 |
| Max HC in | 100 ppm |
| Max CO in | 50 ppm |
| Technology | Platinum catalyst |
| LED indicators | Power on/off, system ready, errors |
| Warm up time (min) | 45 |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 220 |

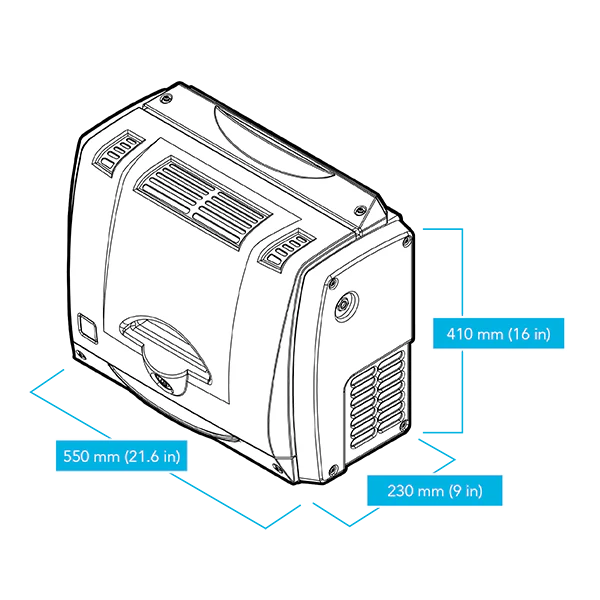

| Product dimensions mm (in) | 550W x 410H x 230D (21.6W x 16H x 9D) |
| Product weight kg (lbs) | 10 (22) |
| Shipping dimensions mm (in) | 650W x 390H x 560D (25.6W x 15.3H x 22D) |
| Shipping weight kg (lbs) | 14 (31) |
| Operating temperature ºC (oF) | 15 to 35 (59 to 95) |
| Inlet connection | 1/4" compression |
| Outlet connection | 1/8" compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
