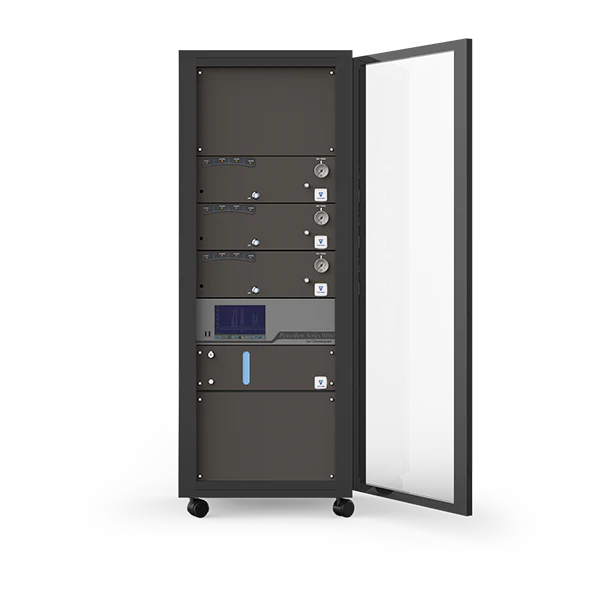

GC Plus 1800 Rack Zero Air Generator
Price: Quote Only
–+
The GC Plus 1800 Rack Zero Air Generator for a 19" rack cabinet is designed to supply ultra-pure hydrocarbon-free zero air for GC-FID applications. Catalytic oxidation technology eliminates hydrocarbons to 0.1ppm, resulting in a flat, stable baseline, increased sensitivity, and repeatable analysis.
GC PLUS 1800 RACK ZERO AIR FEATURES:
▪︎ Flow rate 1800 mL/min
▪︎ Pressure up to 10 barg (145 psig)
▪︎ Zero air purity <0.1 ppm HC
▪︎ Minimal maintenance
▪︎ 2-year standard warranty
ANALYZER APPLICATIONS
▪︎ ONLINE GC-FID
▪︎ MUD LOGGING
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
The following options are available:
▪︎ N/A
| Flow mL/min | 1800 |
| Purity - hydrocarbons | <0.1 ppm |
| Purity - CO | <0.1 ppm |
| Inlet pressure barg (psig) | 4.5 to 10 (65 to 145) |
| Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 |
| Max outlet pressure barg (psig) | 1 barg (15 psig)drop from inlet |
| Max HC in | 100 ppm |
| Max CO in | 50 ppm |
| Technology | Platinum catalyst |
| LED indicators | Power on/off, system ready, errors |
| Warm-up time (min) | 45 |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 200 |

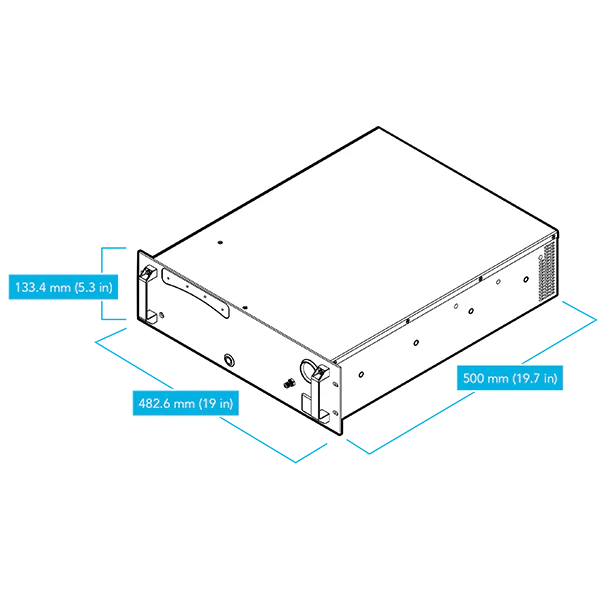

| Product dimensions mm (in) | 19"W x 3UH x 500D (19"W x 3UH x 14.7D) |
| Product weight kg (lb) | 15 (33) |
| Shipping dimensions mm (in) | 720W x 565D x 375H (28.3 x 22.2 x 14.7H) |
| Shipping weight kg (lbs) | 19 (42) |
| Operating temperature ºC (oF) | 15 to 35 (59 to 95) |
| Inlet connection | 1/4" compression |
| Outlet connection | 1/8" compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
